GIHMM GMS Wall-Mount Frames

Robust, proven, well-thought-out

Our GMS wall cabinets are well designed and meet the requirements of a gamma ray monitoring system. The robust design is suitable for outdoor use and has proven itself in practice through its well-thought-out design.

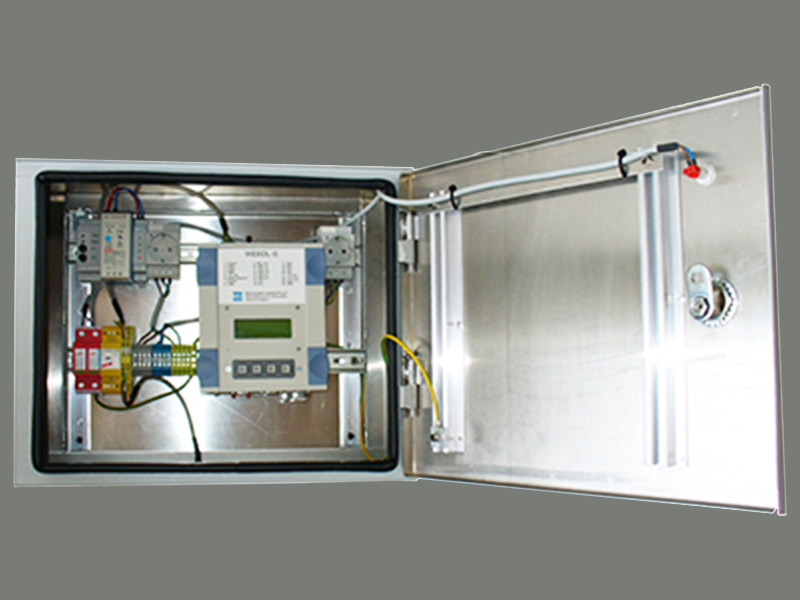

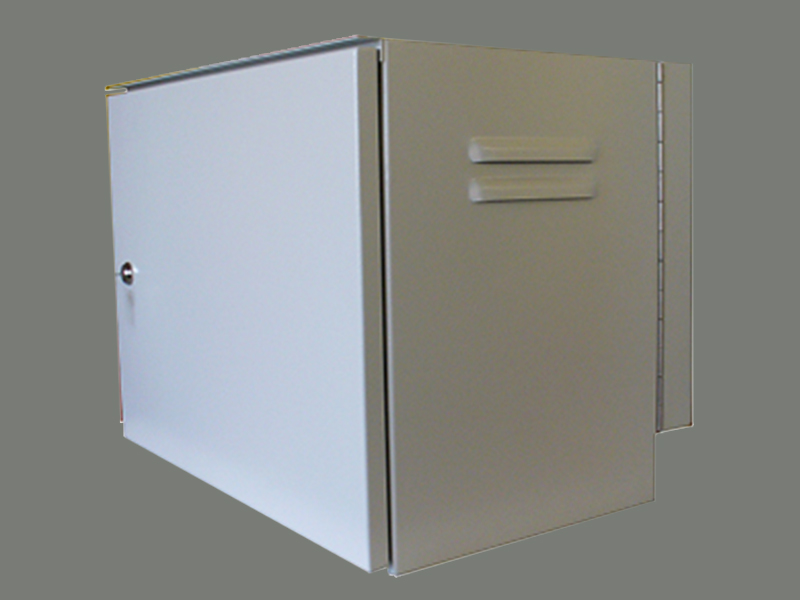

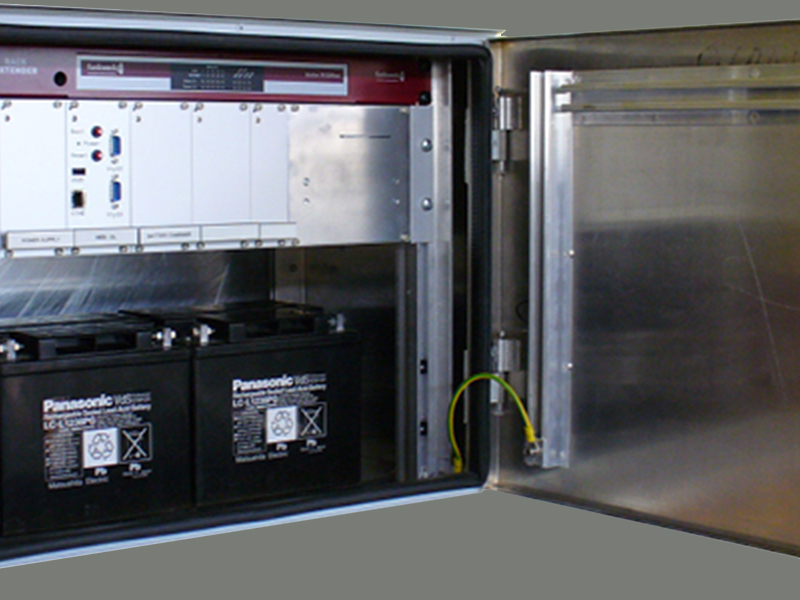

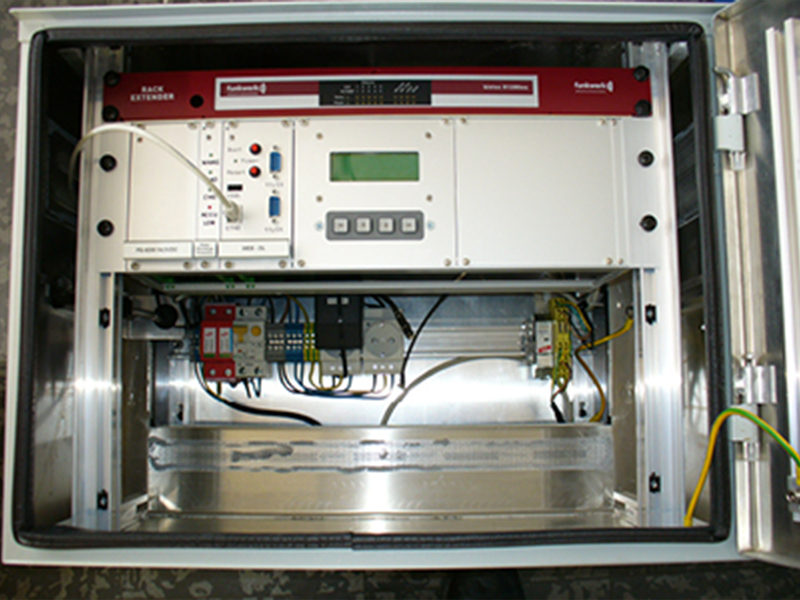

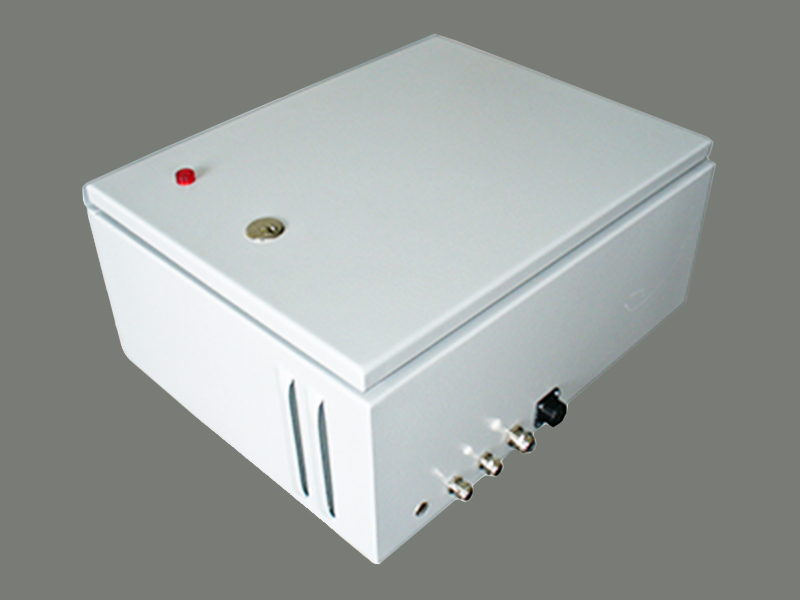

GMS Wall-Mount

Our cabinets for gamma monitoring stations are available in 2 versions:

GMS-Standard

  • Dimensions (LxWxH): 600 x 450 x 350 mm
  • Weight (without accumulator incl. electronic equipment): 15kg (approximately)
  • Finish: Powder-coated aluminium, RAL 7035
  • Wall mounted Cabinet (only indoor use)
  • Anti-corrosion design (aluminium housing)
  • Easy installation, separate mounting of the removable back cover
  • Door hinge right or left possible
  • Fault-current circuit breaker
  • Surge protection system for power grid probe and data communication
  • Key lock
  • Designed for WEBDL2-L

GMS-Light

  • Dimensions (LxWxH): 500 x 400 x 220 mm
  • Weight (without accumulator incl. electronic equipment): 10kg (approximately)
  • Finish: Powder-coated aluminium, RAL 7035
  • Wall mounted Cabinet (only indoor use)
  • Anti-corrosion design (aluminium housing)
  • Plug for RS04 gamma detector
  • Drop-out voltage bridge (backup battery)
  • 12Ah Battery, deep discharge protection
  • Surge protection system for power grid probe and data communication
  • Key lock
  • Designed for WEBDL2-S
