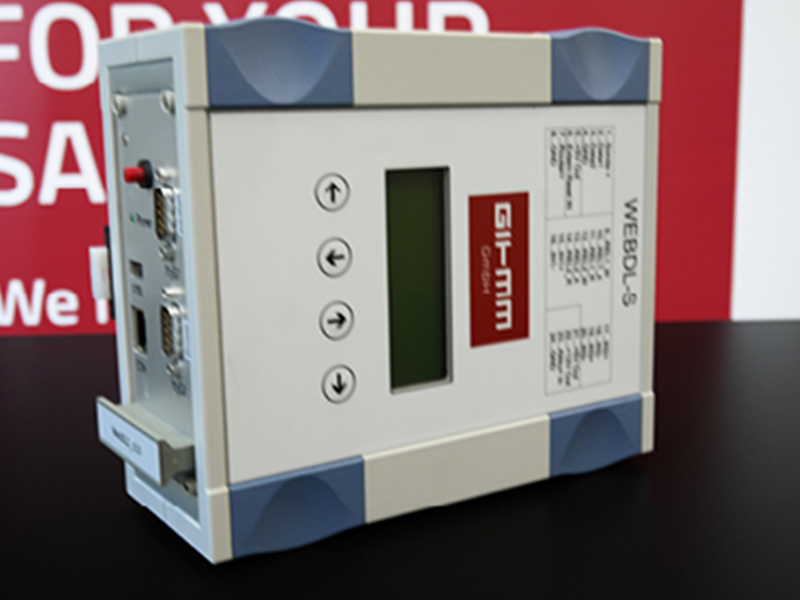

WEBDL2 Datalogger
A universal data storage system

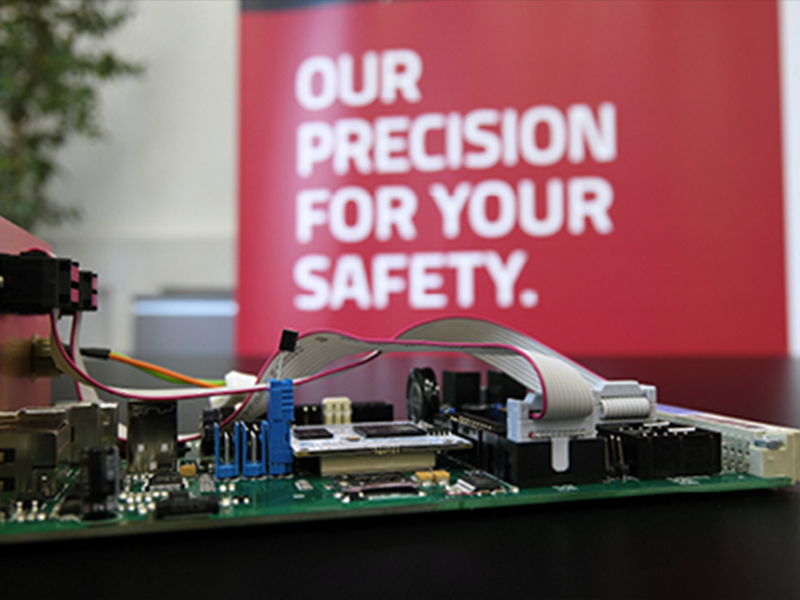

The WEBDL2 is a universal data logger consisting of hard- and software. The data logger is based on an ARM9 CPU. The system is running an embedded Linux as operating system.
It acquires data from directly connected measuring instruments like a gamma detector and stores these data. WEBDL2 can visualize data directly through a web server in an easy way.

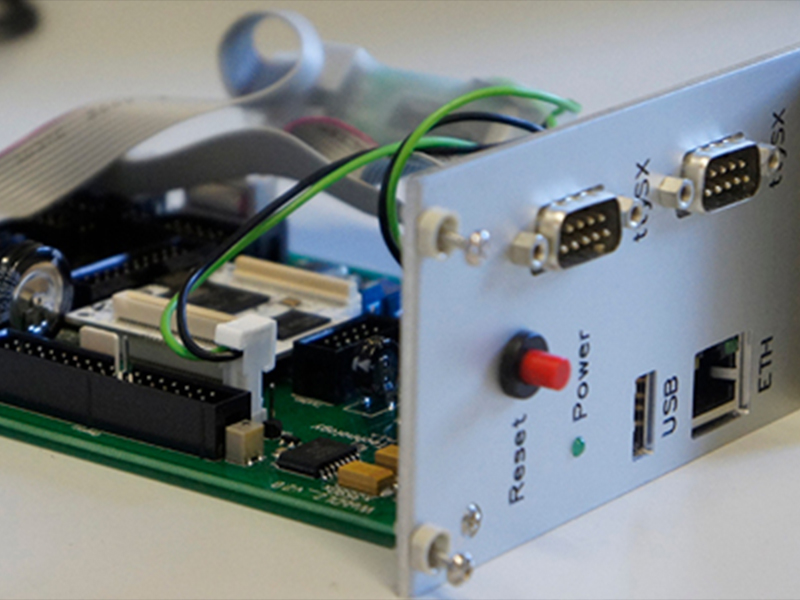

Hardware features
- ARM CPU
- 64MB RAM
- 8MB Data flash (boot loader)
- SD Card / Mini SD Card
- 1 Ethernet port 10/100Mbit (PoE)
- 1 USB connector external
- 1 USB connector internal
- 3 native serial ports (RS232)
- 1 native RS232 port or alternative RS485/422
- 1-wire interface
- Real time clock (RTC), powered by an ultra-capacitor

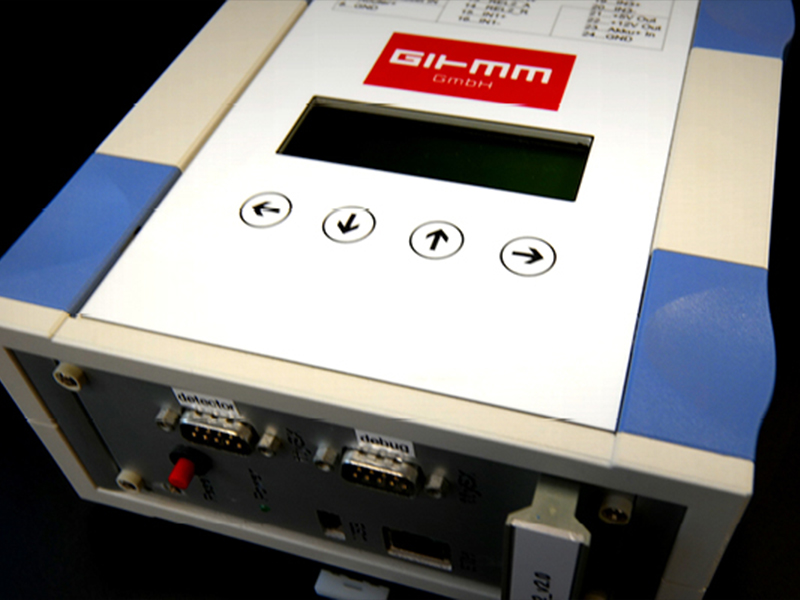

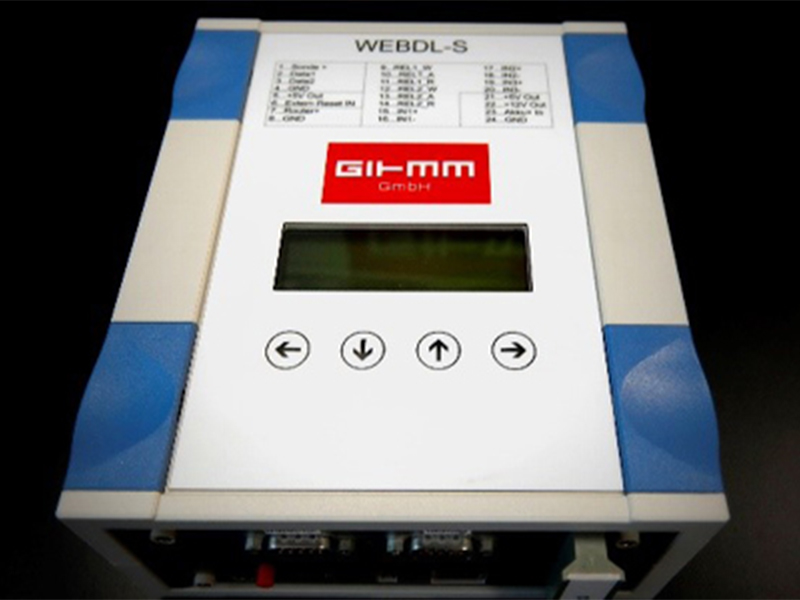

- 4-row LCD Display incl. 4-button keypad
Software features
- Running Linux (2.6.x)
- For specific purpose the WEBDL2 can also provide the collected data through a FTP server
- Every Browser can act as a client. The web page is optimized for MS Internet Explorer 6 but also tested with Firefox 1.5, Netscape 7.1 and Opera 8.51
- Support of SSL (https and SSH)
- Configuration of the station through the web page
- Emergency and maintenance login over a console is provided at a native serial port
- Login over Telnet and SSH is supported
Options
- Using USB, it is possible to connect several devices such as printers, displays and modems
- The flash memory is easily expandable via a memory stick at the USB port
- Connections via SAMBA (such as MS Windows shares)
- Adaptation of the systems to specific customer requirements is possible. LINUX is used as the operating system, which offers many other possibilities
