SCape CO/CBRN

SCape CO/CBRN30

Escape Respirator Mask

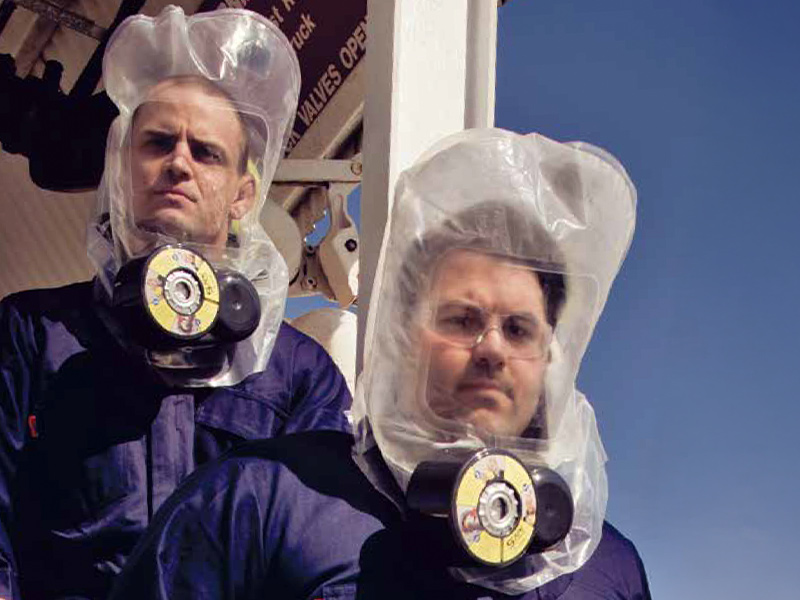

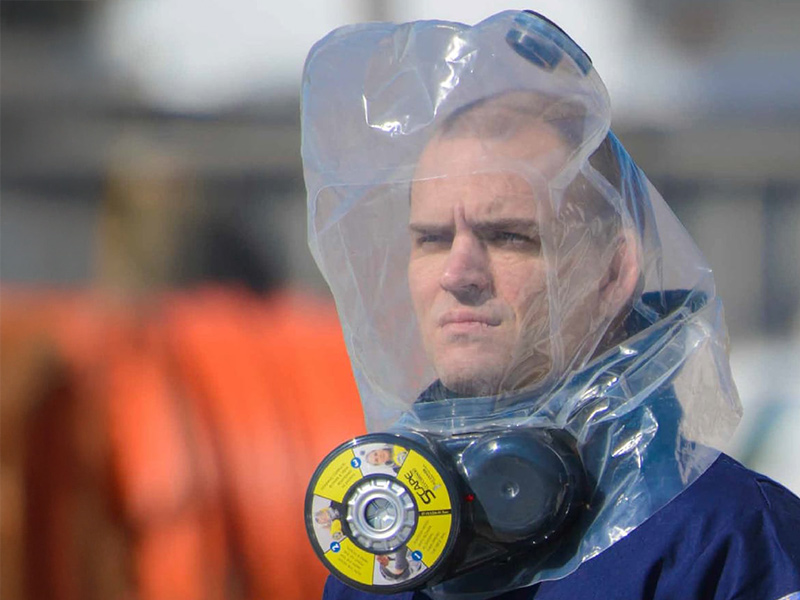

The SCape® CO/CBRN30 from ILC Dover is the most advanced, NIOSH-approved air-purifying escape respirator on the market. It provides missioncritical protection from carbon monoxide, chemical, biological, radiological and nuclear contaminants.

The SCape® CO/CBRN30 system has the same distinguished pedigree. As the only NIOSH-approved air-purifying escape respirator with a powered ventilation system, SCape provides 30 minutes of protection from carbon monoxide, chemical, biological, radiological and nuclear contaminants.

  • Delivers 30 minutes of protection against a broad range of threats, including carbon monoxide.
  • Automatic injection mechanism enabling rapid and controlled intramuscular administration
  • Ergonomic and intuitive design for use under stress, PPE, and limited visibility
  • High mechanical reliability and functional continuity
  • Resistant to extreme environmental, tactical, and battlefield conditions
SCape CO/CBRN image 1

Rapid Deployment

Individuals responding in emergency situations must be able to react quickly and calmly if they are going to escape themselves — and help others who may be having difficulty. The SCape CO/CBRN30 system was designed with rapid response in mind.

Consolidated Storage

Each SCape CO/CBRN30 respirator is stored in its own easily opened, sealed container, and all parts of the SCape respirator are integrated into one assembly. Individual respirators can be safely stored in their containers — in cabinets, drawers, on shelves or in bins distributed throughout a facility.

Instant Activation

The SCape respirator uses an integral blower to provide air and keep the clear hood inflated. The blower is activated automatically when the unit is removed from its container, so no additional steps are required for activation once it is in place.

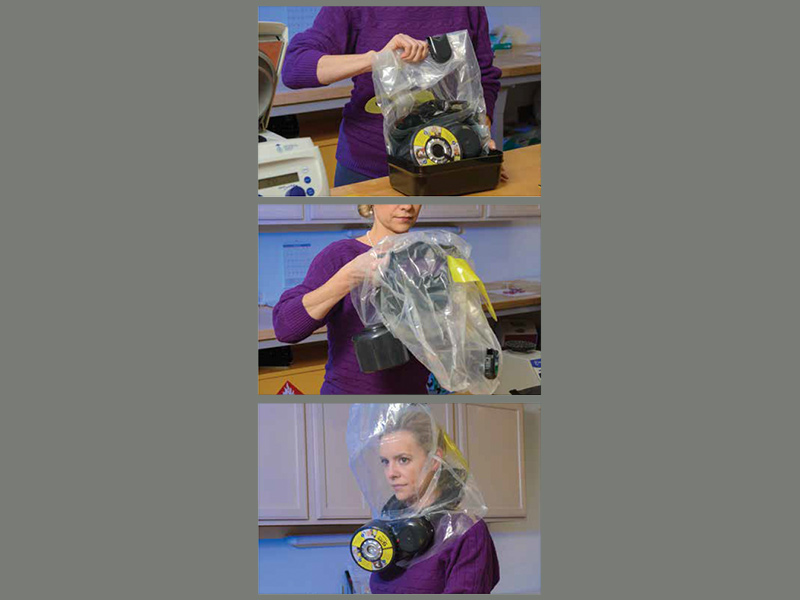

Easy Donning

The SCape system can be donned quickly and fluidly by opening the neck dam and then drawing it over the head. Once in place, the neck dam automatically adjusts to the wearer, creating a tight, comfortable seal.

SCAPE CO/CBRN30 SYSTEM

  • Certifications/Compliance: NIOSH CBRN Air-Purifying Escape Respirator — only CAP 2 (30 minute) approved system with CO protection
  • Shelf Life: 5 Years
  • Storage: Self-contained in sealed container — easily stowed in/on cabinets, drawers, shelves or bins

Escape Hood

  • Protection: Average laboratory respiratory level (LRPL) 50,000 in breathing zone vs. 2,000 NIOSH requirement
  • Inhalation Resistance: Average 5.1 mm H20 vs. 50 mm H20 NIOSH requirement — easy to use, easy to breathe
  • Material: High performance polyolefin/barrier laminate
  • Sizing: Universal — comfortable one-size neck seal; hood easily accommodates glasses, beards, long hair — No fit testing required
  • Adjustment: No nose cup or adjustment straps necessary
  • Visor: Clear hood and large visor—360-degree panoramic field of view
  • Exhaust System: Exhaust valve regulates/maintains positive pressure within the hood

Blower

  • Material: Integral polycarbonate blower assembly with automatic actuatione
  • Flow Rate: 64 lpm clean filtered air delivered to the wearer

Filter

  • Canister: Advanced carbon layering technology incorporating catalyst and P100 particulate filtering media
  • Duration: 30 minutes of NIOSH verified protection
  • Protections: 30 minute protection against carbon monoxide, plus protection against mustard (HD) vapor, mustard (HD) liquid, sarin (GB) vapor, as well as a number of chemicals, including ammonia, benzene, chloride, hydrogen cyanide, hydrogen sulfide and phosgene.
